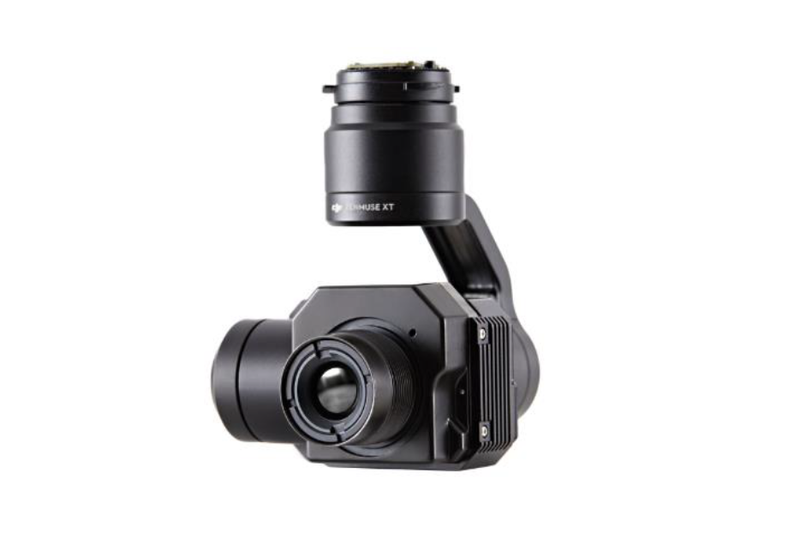

DJI FLIR Zenmuse XT 640x512 30Hz 13mm Lens - Radiometric

Brand

DJI x FLIR Systems

Product Overview

The DJI Zenmuse XT is a trusted, industry-proven thermal imaging payload developed in collaboration with FLIR Systems, designed for public safety, inspection, and industrial applications. This configuration features a 640×512 radiometric thermal sensor with a 30Hz refresh rate and a 13mm wide-angle lens, delivering high-resolution thermal imaging with broad coverage and real-time performance.

Optimized for rapid situational awareness, the 13mm lens provides a wider field of view, making it ideal for search & rescue, firefighting, and large-area inspections. With radiometric capabilities, users can measure temperature across every pixel, enabling accurate diagnostics and data-driven decision-making.

What’s Included & What to Know

What’s Included

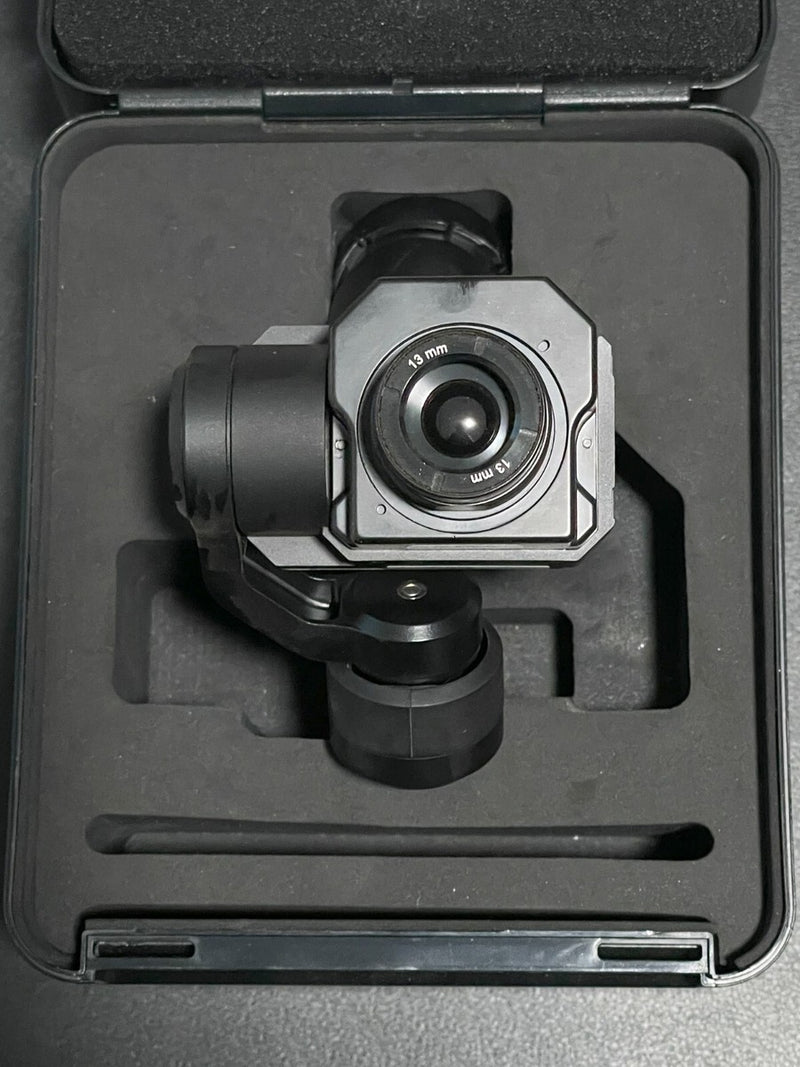

• DJI Zenmuse XT Thermal Camera (640×512, 30Hz, 13mm Radiometric)
• Integrated Thermal Imaging System
• 3-Axis Stabilized Gimbal
• DJI SkyPort Mounting Interface
• Protective Storage Case
• Calibration & Setup Tools
• User Manuals & Documentation

What to Know

• Compatible with DJI Matrice 100, 200 Series, and select Inspire platforms (with adapter)
• Requires drone, controller, and batteries (sold separately)
• Thermal-only payload (no integrated RGB camera)
• Ideal for public safety, utilities, inspections, and firefighting
• Supports radiometric temperature measurement for analysis and reporting

What to Know Before You Fly

• Ensure proper mounting via DJI SkyPort interface or adapter
• Update firmware for both drone and payload
• Calibrate the thermal sensor before mission use
• Perform full pre-flight checks (connections, storage, GNSS signal)
• Follow FAA and local UAV regulations
• Understand thermal imaging fundamentals for accurate interpretation

Key Features & Why It Matters

• 640×512 Radiometric Thermal Sensor (30Hz)
  Provides high-resolution thermal imaging with real-time responsiveness.
• 13mm Wide-Angle Lens
  Covers larger areas quickly—ideal for search & rescue and situational awareness.
• Radiometric Temperature Measurement
  Capture precise temperature data for inspection and diagnostics.
• FLIR Thermal Imaging Technology
  Industry-leading thermal accuracy and reliability.
• Lightweight & Compact Design
  Maintains flight efficiency on compatible UAV platforms.
• 3-Axis Stabilized Gimbal
  Ensures smooth and stable thermal imaging during flight.
• Seamless DJI Integration
  Compatible with DJI enterprise drones for reliable performance.

Sensors, Modules & Camera / Capabilities

• Thermal Camera: 640×512 radiometric thermal sensor
• Frame Rate: 30Hz
• Lens: 13mm (wide field of view)
• Temperature Measurement: Radiometric (per-pixel data)
• Image Processing: FLIR thermal imaging engine
• Stabilization: 3-axis gimbal
• Integration: DJI SkyPort / compatible adapters
• Data Output: Thermal imagery, temperature data
• Applications: Search & rescue, firefighting, inspection, utilities
